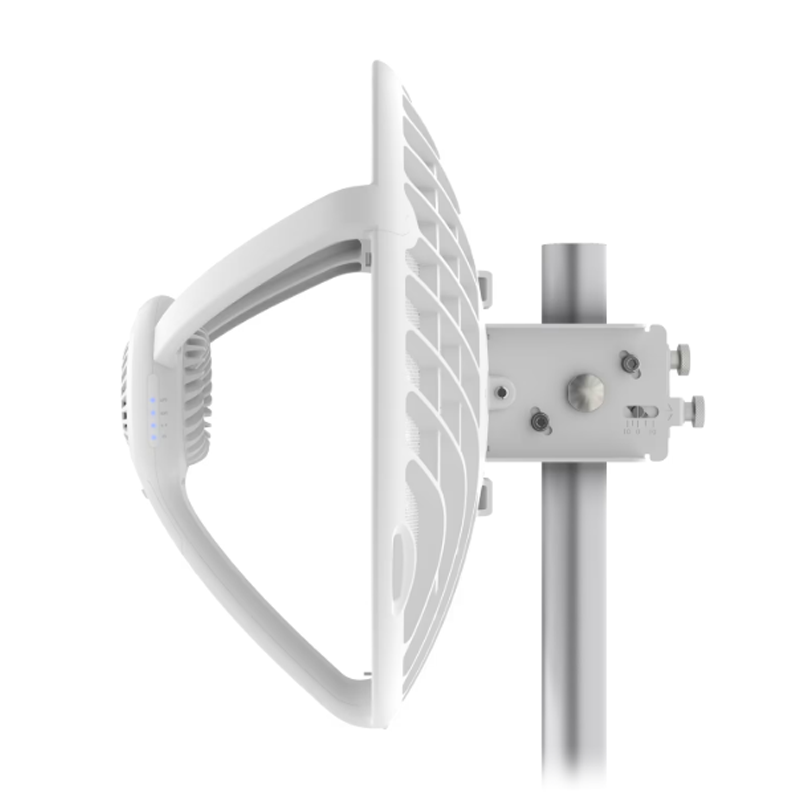

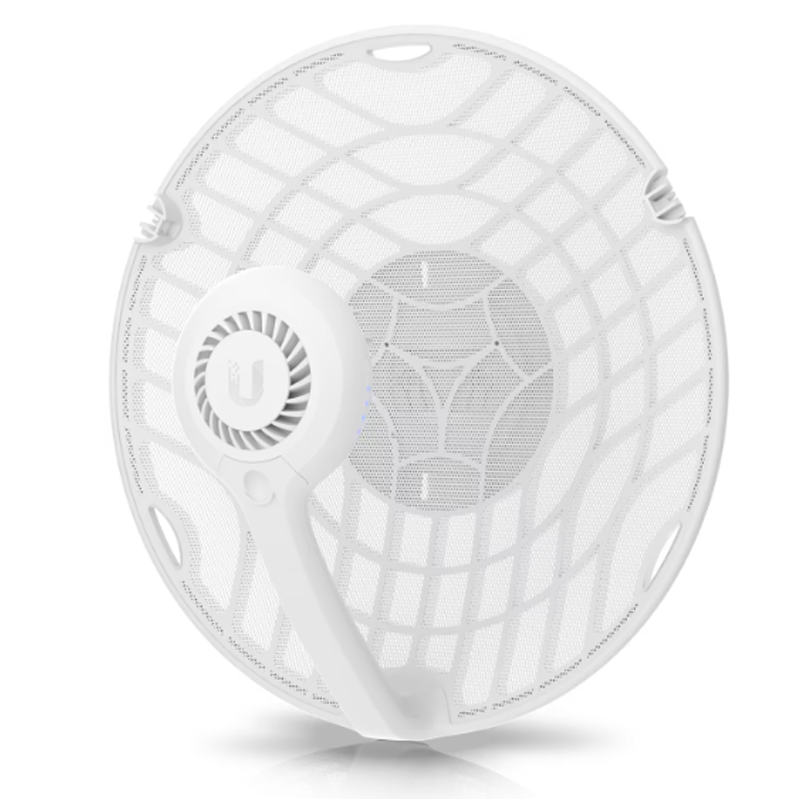

AF60-LR
310 $
Long-range 60 GHz radio system that pairs in PtP mode or connects to a Wave AP as a client in PtMP mode.
Description
Dimensions
Ø413 x 360 mm (Ø16.3 x 14.2″)
Weight
Without mount: 1.5 kg (3.3 lb) With mount: 2.7 kg (6 lb)
Enclosure Material
Aluminum, UV stabilized polycarbonate
Mount Material
Galvanized steel
Mounting
Precision alignment kit (included)
Pole Mount Diameter
Ø25.4 to 76.2 mm (Ø1 to 3″)
Wind Loading
420 N at 200 km/h (94.4 lbf at 125 mph)
Processor
Quad-Core ARM® Cortex® A7
Memory
256 MB
Networking Interface
(1) GbE RJ45 port
Management Interface
Bluetooth
Max. Power Consumption
22W
Power Method
Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 😎 Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only
Supported Voltage Range
44–54V DC 22–27V DC
Power Supply
48V DC, 0.65A gigabit PoE adapter (Included)
GPS
✓
RF Connections
Internal
LEDs
Power
Flashing white: bootup in progress White: not connected to UISP application Blue: connected to UISP application
Ethernet
Flashing blue: Ethernet activity
GPS
Blue: receiving at least (4) GPS satellite signals
60G
Blue: active connection
Ambient Operating Temperature
-40 to 60° C (-40 to 140° F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
✓
Certifications
FCC, IC, CE
Operating Modes
PtP PtMP Station
Ubiquiti Specific Features
Discovery Protocol
✓
Services
UISP
✓
Ping Watchdog
✓
NTP Client
✓
SNMP
✓
Tools
Wave AI
✓
Wave Technology
✓
Utilities
Antenna Alignment
✓
Ping
✓
Speed Test
✓
Traceroute
✓
Discovery Utility
✓
Network
Bridge mode
Total Throughput
2 Gbps
Max. Range
12+ km (7.45 miles)
Operating Frequency
Worldwide
57–71 GHz
Channel Bandwidth
2160, 1080 MHz
Operating Channels
8320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz
Modulation
16QAM, QPSK
Antenna Gain
38 dBi
Polarization
Vertically-Linear
Beamwidth
Azimuth: 3 dB 1.6° Elevation: 3 dB 1.6°
