Name: AP3600 1.0
Brand: Cudy
SKU: 12077
Availability: InStock

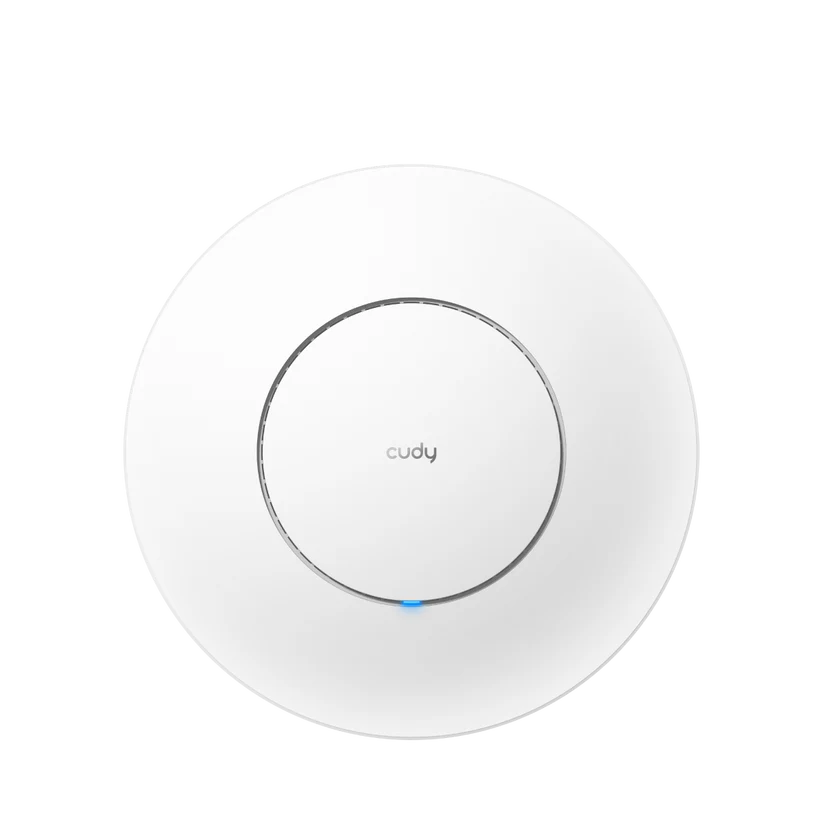

AP3600 1.0

85 $

A wall/ceiling-mounted WiFi 7 AP designed for malls, offices, campuses, and other high-density scenarios, featuring a 2.5G PoE IN port and a PoE Out port.

Broadcom 2 GHz Quad-Core CPU
4-Stream Dual-Band Wi-Fi 7
2882 Mbps + 688 Mbps Wi-Fi ¹
1× Shielded 2.5GbE PoE IN
1× Shielded GbE PoE Out ²
802.3at, Passive PoE, DC
Watchdog, Schedule Reboot
Covers 120 m² (1,300 ft²) ³
200 Connected Devices ⁴

Model Version	AP3600 1.0
CPU	CPU Details	2.0 GHz Quad-Core, ARM Cortex-A7
Memory/Storage	Flash/ROM	128 MB (1 Gbit) NAND
	DDR/RAM	512 MB (4 Gbit) DDR3L
Wireless	5 GHz Wi-Fi Speed	2882 Mbps
	2.4 GHz Wi-Fi Speed	688 Mbps
	5 GHz Wi-Fi Streams	2T2R (2×2 MIMO)
	2.4 GHz Wi-Fi Streams	2T2R (2×2 MIMO)
	Wi-Fi Antennas	4× Internal
	FEM or PA/LNA	5 GHz: 2× External 2.4 GHz: 2× Internal
	Beamforming	True
	Range Performance	Max: 220 m (722 ft) Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
	Wall Performance	Two wooden walls with thickness < 10 cm (4”) One concrete wall with thickness < 20 cm (7”) or two concrete walls with thickness < 10 cm (4”)

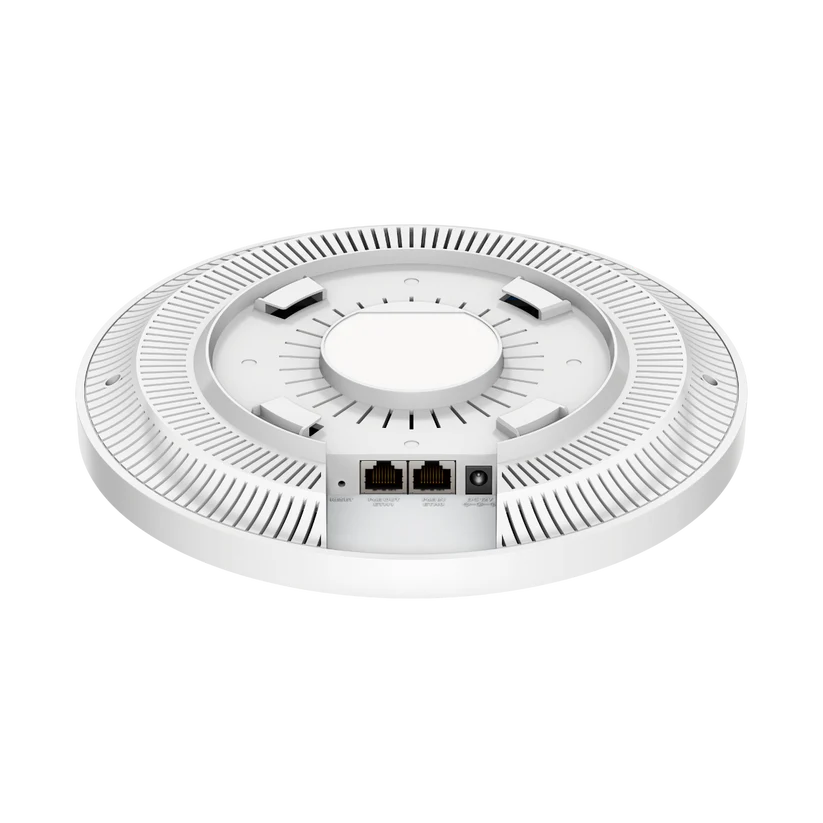

Interfaces	2.5G RJ45 Ports	1
	Gigabit RJ45 Ports	1
	Ethernet Notes	Accepts PoE powering
	LED	System
	Physical Buttons	Reset Button
	Power Interfaces	DC Jack PoE via Ethernet Port
Power	Power Methods	DC Passive PoE 802.3at/af PoE
	Power Input	DC: 12V⎓1A Passive PoE: 48-57V⎓ PoE: 802.3at/af
	Power Adapter in the Box	AP3600 \| No adapter in the box AP3600_P \| PoE adapter in the box: Input: 100-240V~, 50/60Hz Output: 48V⎓ Passive PoE
	Max Power Consumption (W)	10W
Reliability	Advanced	Hardware Watchdog
	EMC	ESD: Contact: 4kV; Air: 8kV
	Environment	Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 95% non-condensing
Certifications	FCC, CE

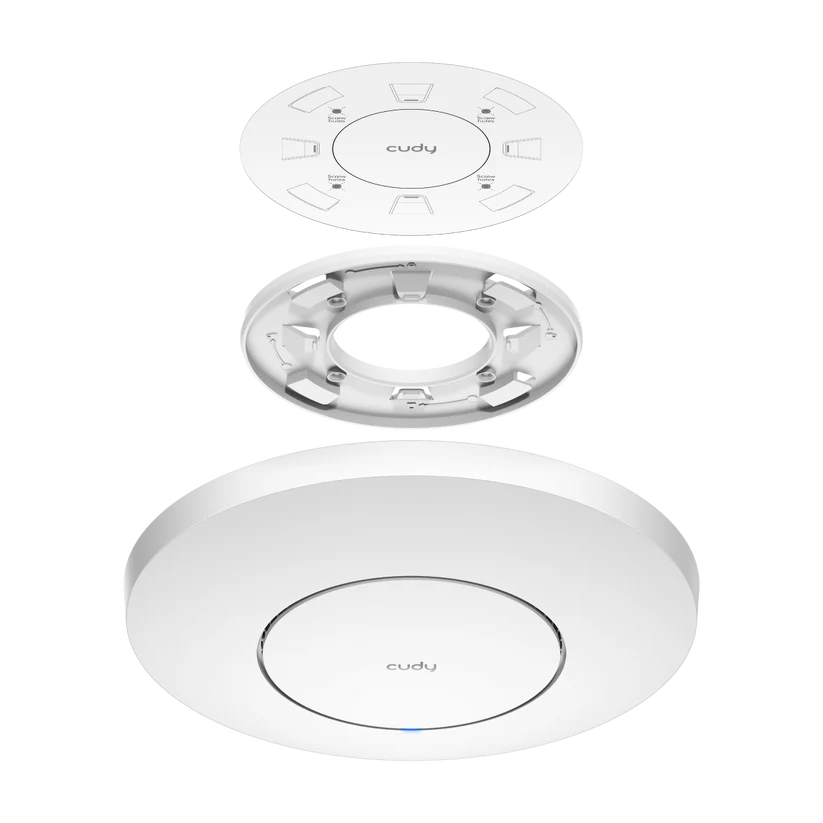

Mechanical	Installation	Wall-mount Ceiling-mount
	Dimension	231.9×231.9×57.1 mm 9.13×9.13×2.25 inches
	Product Weight	Adapter Not Included \| EU: 435.0 g (15.34 oz.) EU: 435.0 g (15.34 oz.) With PoE Adapter (_P) \| EU: 435.0 g (15.34 oz.)

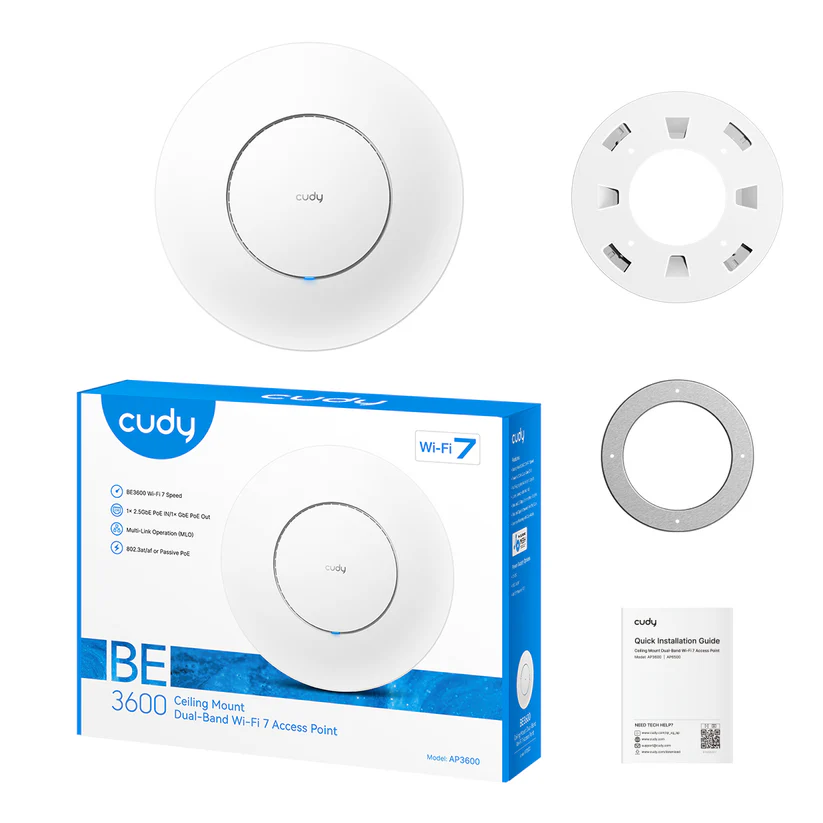

Package Content	AP3600 Mounting Kit Ethernet Cable Installation Guide
Ordering Information	Retail Package Weight	EU: 843.0 g (29.74 oz.) With PoE Adapter (_P) \| EU: 843.0 g (29.74 oz.)
	Retail Package Dimension	310×238×73 mm 12.2×9.37×2.87 inches
	Units per Carton	10
	Carton Net Weight	EU: 8.5 kg (18.74 lbs) With PoE Adapter (_P) \| EU: 8.5 kg (18.74 lbs)
	Carton Gross Weight	EU: 9.4 kg (20.72 lbs) With PoE Adapter (_P) \| EU: 9.4 kg (20.72 lbs)
	Carton Dimension	49.5×38.7×33.2 cm 19.49×15.24×13.07 inches
