SyscomX MINI DC UPS
Model: SX-UPS 20000
1. Product Overview
The SyscomX MINI DC UPS SX-UPS 20000 is a com
Description
SyscomX MINI DC UPS
Model: SX-UPS 20000
1. Product Overview
The SyscomX MINI DC UPS SX-UPS 20000 is a compact backup power supply designed to keep small networking and electronic devices running during power outages.
It features a built-in LiFePO4 battery, multiple DC output options, USB, Type-C, and selectable PoE 24V / 48V output, making it suitable for routers, modems, CCTV cameras, Wi-Fi devices, and other low-power network equipment.
2. Product Information
| Item | Specification |
|---|---|
| Brand | SyscomX |
| Product Name | MINI DC UPS |
| Model | SX-UPS 20000 |
| Product Type | Mini DC UPS / Backup Power Supply |
| Battery Type | Built-in LiFePO4 Battery |
| Battery Capacity | 5000mAh × 4 |
| Total Capacity | 20000mAh |
| Max Output Power | 18W |
| Made In | China |

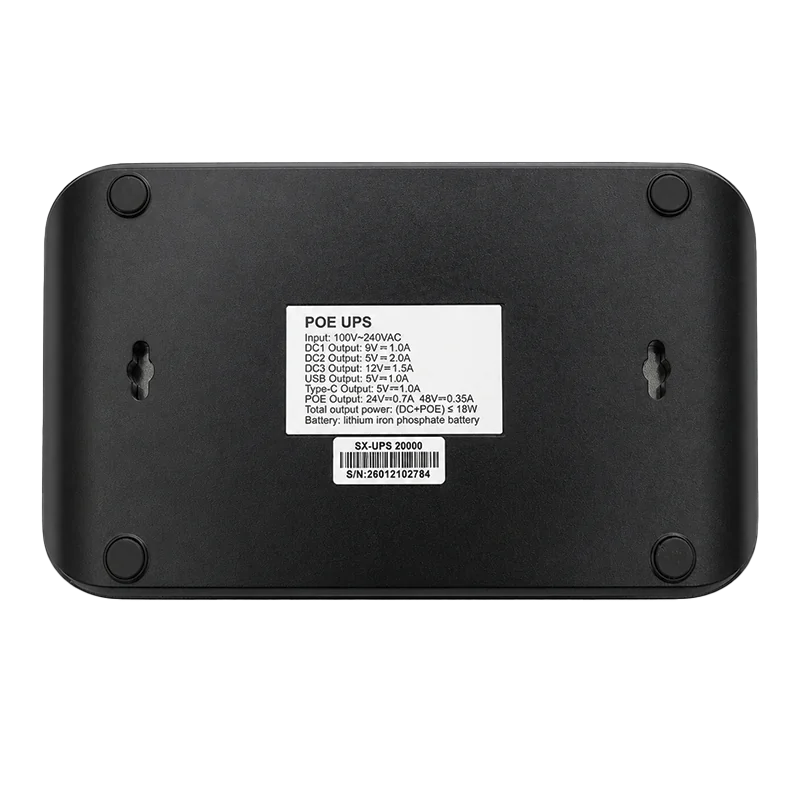

3. Electrical Specifications
| Item | Specification |
|---|---|
| Rated Working Voltage | 100–240Vac / 50–60Hz |
| Output Power Max. | 18W |
| DC1 Output Interface | 9Vdc / 1A |
| DC2 Output Interface | 5Vdc / 2A |
| DC3 Output Interface | 12Vdc / 1.5A |
| USB Output Interface | 5Vdc / 1A |
| Type-C Output Interface | 5Vdc / 1A |
| PoE Output Interface | 24Vdc / 0.7A or 48Vdc / 0.35A |
| Selectable DC Output | 9V / 12V via switch |
| Selectable PoE Output | 24V / 48V |
4. Physical Specifications
| Item | Specification |
|---|---|
| Unit Dimensions | 206 × 120 × 35 mm |
| Net Weight | 0.65 kg |
| Color | Black |
| Design | Compact Desktop Design |
5. Features
- Built-in LiFePO4 battery
- Microprocessor controller for high reliability
- Auto start when plugged in
- Manual power on/off switch
- Overload protection
- Short-circuit protection
- Over-charge protection
- Over-discharge protection
- User-friendly multi-LED status indicators
- Selectable output voltage 9V / 12V DC
- USB and Type-C 5V output
- Selectable PoE 24V / 48V output
- Compact and lightweight design
- Suitable for home, office, and small network installations

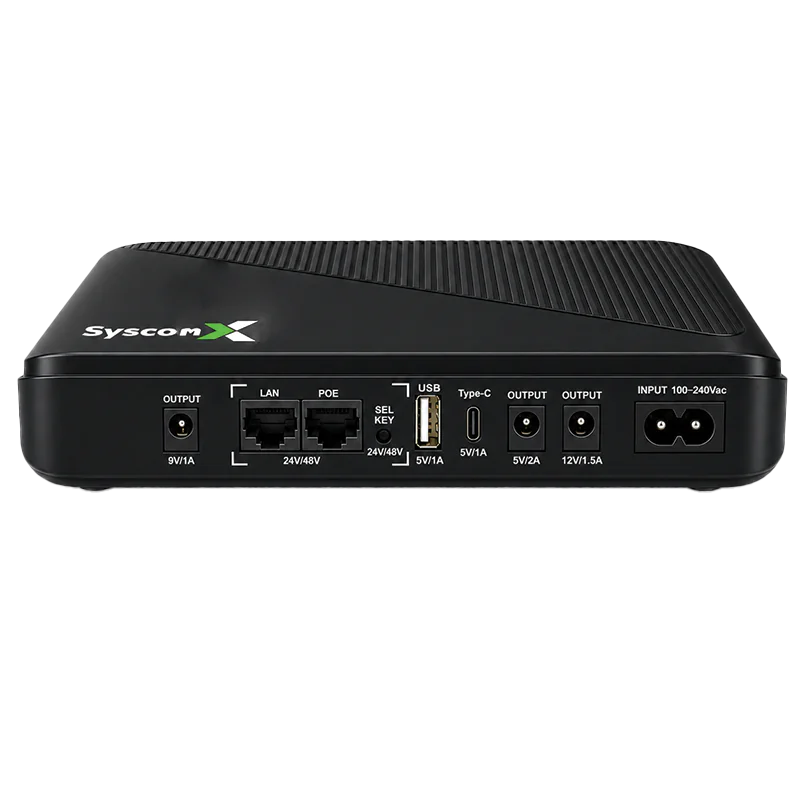

6. Interfaces & Ports
| Port / Interface | Function |
|---|---|
| AC Input | 100–240Vac power input |
| DC 9V Output | For 9V compatible devices |
| DC 12V Output | For 12V compatible devices |
| DC 5V Output | For 5V compatible devices |
| USB Port | 5V / 1A output |
| Type-C Port | 5V / 1A output |
| LAN Port | Network input / pass-through |
| PoE Port | 24V / 48V PoE output |
| SEL Key | Selects PoE output voltage 24V / 48V |
| Power Switch | Manual power on/off control |

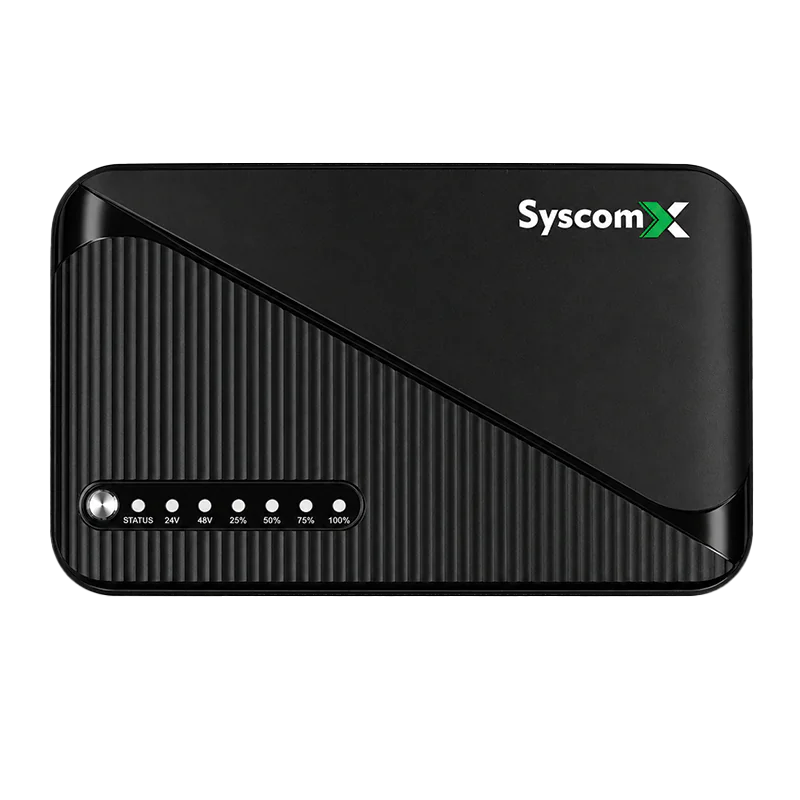

| LED Indicators | Status, 24V, 48V, 25%, 50%, 75%, 100% |
7. Applications
The device is suitable for powering:
- Router
- Modem
- Wi-Fi device
- CCTV camera
- Wireless phone
- Antenna device
- PSP
- Phone
- PS4
- X-Box
8. Suitable Environments
- Homes
- Offices
- Internet service points
- CCTV systems
- Small network installations
- Shops and retail locations
- Backup power for low-power network devices
9. Important Notes
- Always check the voltage requirement of the connected device before use.
- Maximum total output power is 18W.
- The device is suitable for low-power devices only.
- The PoE output can be selected between 24V and 48V.
- Make sure to select the correct PoE voltage before connecting any PoE device.
- Battery capacity is listed as 5000mAh × 4, equal to a total nominal capacity of 20000mAh.
- Product specifications are subject to change without notice.
