-2%
PBE-5AC-500
Original price was: 215 $.205 $Current price is: 205 $.
AM-5G20-90
Original price was: 175 $.166 $Current price is: 166 $.
U6-LR
Original price was: 212 $.208 $Current price is: 208 $.

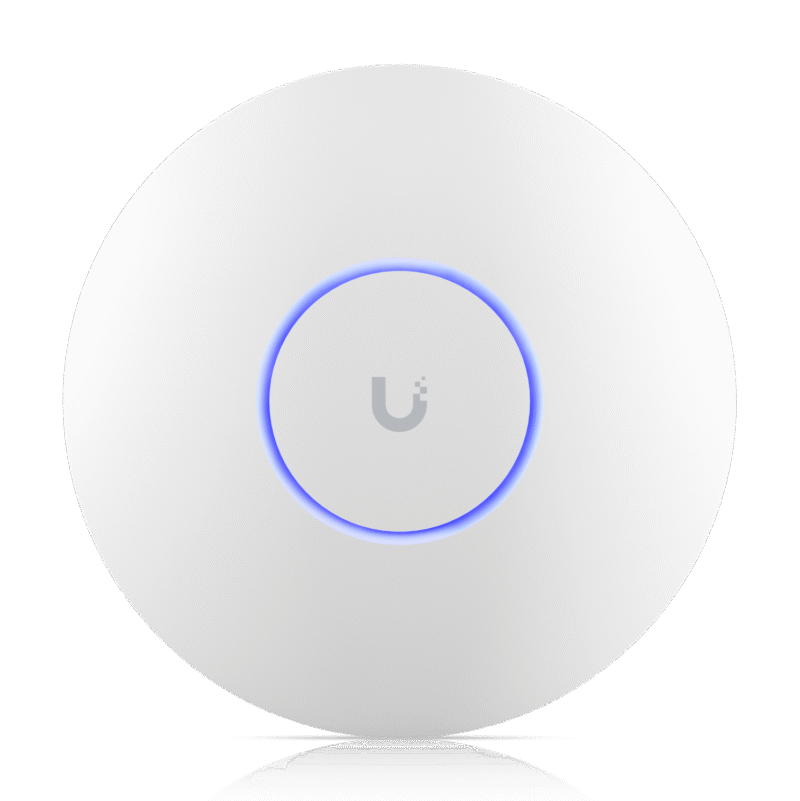

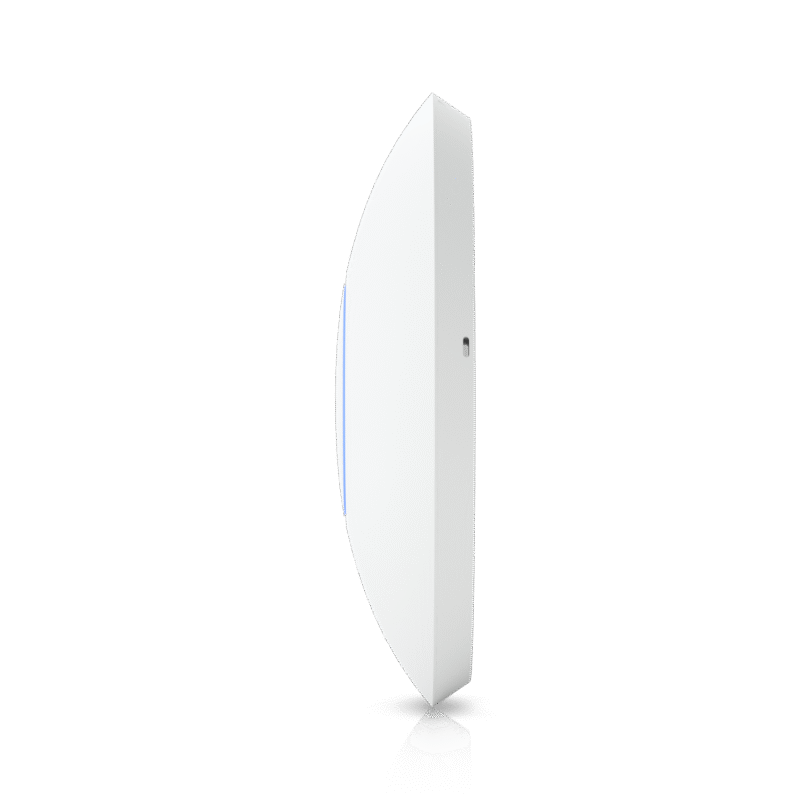

U6 Long-Range
Description
Dimensions
Ø220 x 48 mm (Ø8.7 x 1.9″)
WiFi Standard
WiFi 6
Spatial Streams
8
Coverage Area
185 m² (2,000 ft²)
Max. Client Count
350+
Uplink
GbE

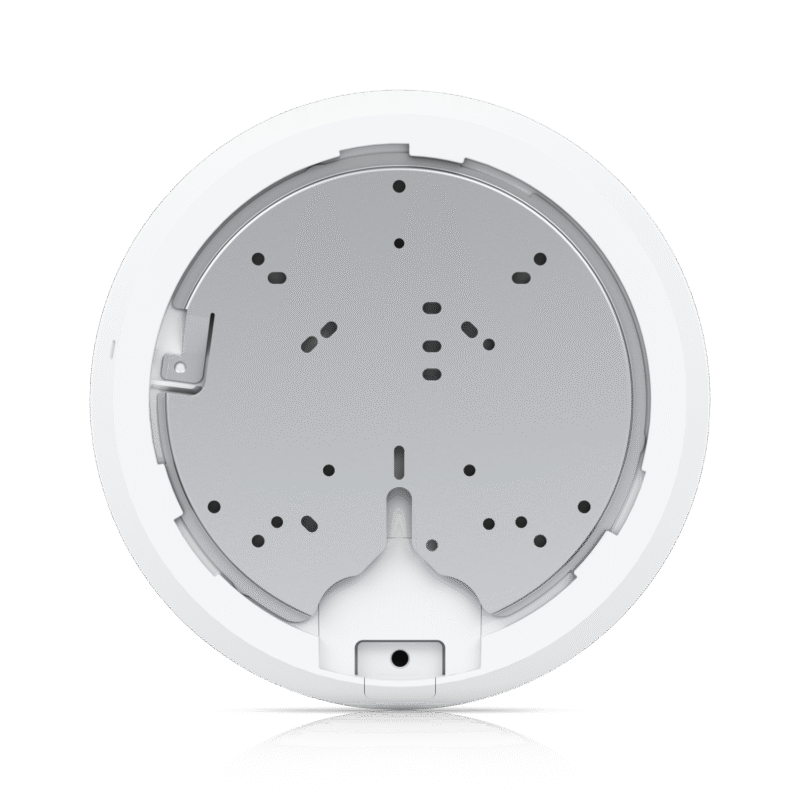

Mounting
Ceiling, Wall (Pro Mount Included)
Weatherproofing
IP54
Power Method
PoE+
MIMO
5 GHz
4 x 4 (DL/UL MU-MIMO)
2.4 GHz
4 x 4 (SU-MIMO)
Max. Data Rate
5 GHz
2.4 Gbps (BW160)
2.4 GHz
600 Mbps (BW40)
Antenna Gain
5 GHz
5.5 dBi
2.4 GHz
4 dBi
Max. TX Power
5 GHz
26 dBm
2.4 GHz
26 dBm
Max. BSSIDs
8 per Radio
Supported Data Rates
802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80) 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 160)
802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80) 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 160)
802.11n
6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40)
Wireless Meshing
✓
Band Steering
✓
802.11v BSS Transition Management
✓
802.11r Fast Roaming
✓
802.11k Radio Resource Management (RRM)
✓
Advanced Radio Management
✓
Passpoint (Hotspot 2.0)
✓
Captive Hotspot Portal
Custom Branding Landing Page
✓
Voucher Authentication
✓
Payment-Based Authentication
✓
External Portal Server Support
✓
Password Authentication
✓
Guest Network Isolation
✓
Private Pre-Shared Key (PPSK)
✓
WiFi Speed Limiting
✓
Client Device Isolation
✓
WiFi Schedules
✓
RADIUS over TLS (RadSec)
✓
Dynamic RADIUS-assigned VLAN
✓
Max. Power Consumption
18.5W
Supported Voltage Range
44—57V DC
Networking Interface
(1) GbE RJ45 port
Weight
Device: 800 g (1.8 lb) With mount: 930 g (2.1 lb)
Management
Ethernet Bluetooth
Enclosure Material
Polycarbonate
Mount Material
Stainless steel (SUS304)
LEDs
System
White/Blue
Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz)
NDAA Compliant
✓
Certifications
CE, FCC, IC, Anatel, SRRC
Operating Frequency
US/CA: 2400 – 2472 MHz U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz Worldwide: 2400 – 2483.5 MHz 5150 – 5725 MHz
Ambient Operating Temperature
-30 to 60° C (-22 to 140° F)
Ambient Operating Humidity
5 to 95% noncondensing
Application Requirements
UniFi Network
Version 6.0.45 and later
