USW-Lite-8-POE (52W)
160 $
An 8-port, Layer 2 PoE switch supporting silent fanless cooling.
Description
Dimensions
99.6 x 163.7 x 31.7 mm (4 x 6.4 x 1.3″)

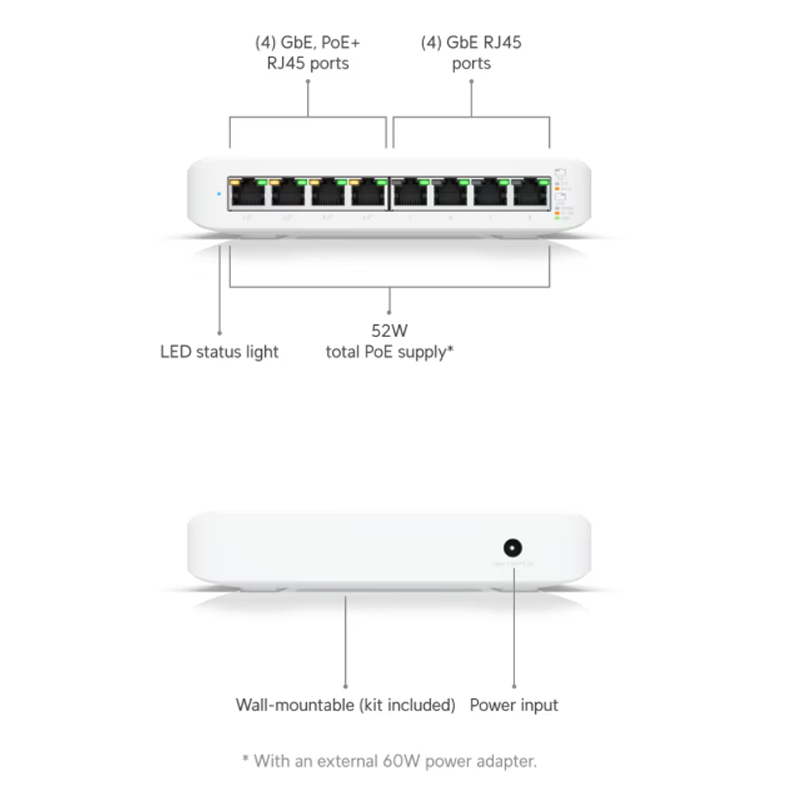

Port Layout
1 GbE RJ45
8 (4 PoE+) (1G/100M/10M)
Max. PoE Output
Up to PoE+
Total PoE Availability
52W
Form Factor
Compact desktop, wall
Switching Capacity
16 Gbps
Total Non-Blocking Throughput
8 Gbps
Forwarding Rate
12 Mpps
Supported VLANs
1,000
MAC Address Table Size
8,000
Packet Buffer Size
0.5 MB
Access Lists
IPv4
128
MAC
128
LACP Port Aggregation
✓
STP & RSTP
✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
✓
IGMP Snooping
✓
802.1X Control
✓
MAC-Based ACLs & Device Isolation
✓
DHCP Snooping & Guarding
✓
Egress Rate Limit
✓
Flow Control
✓
Storm Control
✓
Multicast & Broadcast Rate Limiting
✓
MAC Address Blocking
✓
IP-Based ACLs & Network Isolation
✓
MAC-Based Port Restriction
✓
Port Isolation
✓
Port Mirroring
✓
Jumbo Frames
✓
LLDP-MED
✓
Voice VLAN
✓
Loop Protection
✓
Virtual Network Override
✓
PoE Ports
PoE+
4
Max. PoE Wattage per Port by PSE
PoE+
30W
Max. Power Consumption
8W (Excluding PoE Output) 60W (Including PoE Output)
Power Method
AC/DC Adapter (included)
Power Input Method
DC input
Power Supply
AC/DC, external, 60W
Supported Voltage Range
50—57V DC
Management
Ethernet
Heat Dissipation
27.3 BTU/hr (Excluding PoE Output)
Weight
295 g (10.4 oz)
Enclosure Material
Polycarbonate
Mount Material
Polycarbonate
Ambient Operating Temperature
-15 to 40° C (5 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
NDAA Compliant
✓
Certifications
CE, FCC, IC, Anatel: 04479-21-08356
Application Requirements
UniFi Network
Version 7.2.94 and later
