NetBox 5 ax
110 $

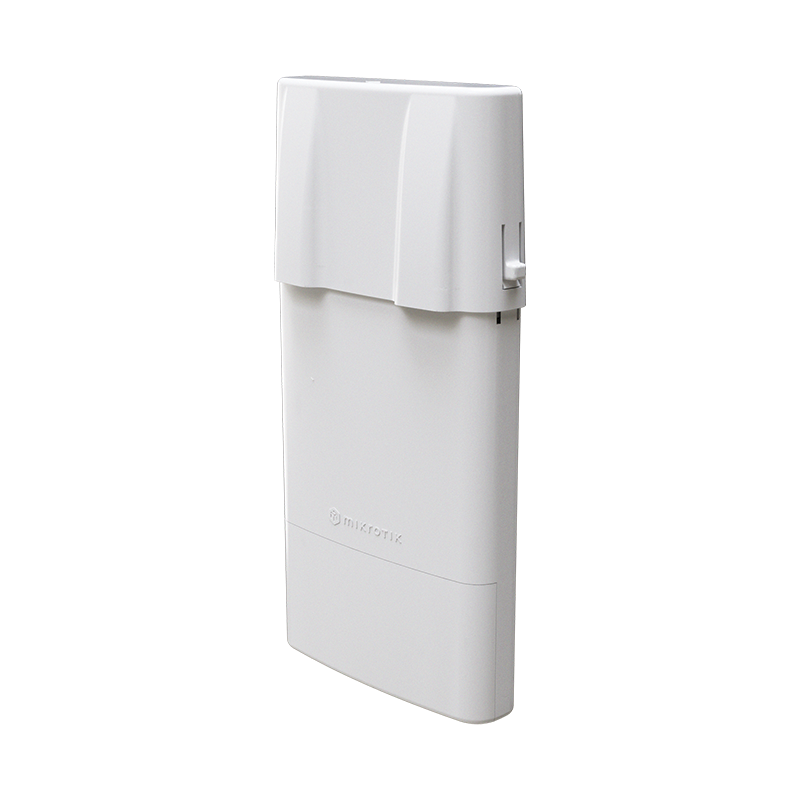

A Wi-Fi 6 upgrade of the popular NetBox 5. AP/CPE/Point-to-point – it can do it all! PoE-in, DC jack, Gigabit Ethernet, durable outdoor enclosure, modern dual-core ARM CPU, Wi-Fi-6 5GHz wireless.
Description
Specification
Specifications
- Product codeL11UG-5HaxD-NB
- ArchitectureARM 32bit
- CPUIPQ-5010
- CPU core count2
- CPU nominal frequency800 MHz
- CPU Threads count2
- RouterOS license4
- Operating SystemRouterOS v7
- Size of RAM256 MB
- Storage size128 MB
- Storage typeNAND
- MTBFApproximately 200’000 hours at 25C
- Tested ambient temperature-40°C to 70°C
Powering
- Number of DC inputs1 (PoE-IN)
- Max power consumption15 W
- Max power consumption without attachments6 W
- PoE inPassive PoE
- Cooling typePassive
- PoE in input Voltage18-28 V
Wireless specifications
- Wireless 5 GHz Max data rate2400 Mbit/s
- Wireless 5 GHz Number of chains2
- Wireless 5 GHz standards802.11a/n/ac/ax
- Wireless 5 GHz chip modelQCN-6102
- Wireless 5 GHz generationWi-Fi 6
Ethernet
- 10/100/1000 Ethernet ports1
Peripherals
- Number of USB ports1
- USB Power ResetYes
- USB slot typeUSB type A
- Max USB current (A)1.5
Other
- PCB temperature monitorYes
- Voltage MonitorYes
- BeeperYes
Certification & Approvals
- CertificationCE, FCC, IC, EAC, ROHS
- IP54
Included parts
Note
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
Wireless Specification
5 GHz
Transmit (dBm)
Receive Sensitivity
6MBit/s
28
-96
54MBit/s
26
-80
MCS0
28
-96
MCS7
25
-75
MCS9
23
-70
MCS11
20
-67
Ethernet test results
| L11UG-5HaxD-NB | IPQ-5010 one port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 81.1 | 984.6 | 233.3 | 955.6 | 689.2 | 374.9 |
| Bridging | 25 bridge filter rules | 81.1 | 984.6 | 201.6 | 825.6 | 204.8 | 111.4 |
| Routing | none (fast path) | 81.3 | 987.4 | 219.1 | 897.3 | 398 | 216.5 |
| Routing | 25 simple queues | 81.3 | 987.4 | 178.6 | 731.4 | 181 | 98.5 |
| Routing | 25 ip filter rules | 81.3 | 987.4 | 123.4 | 505.5 | 122.6 | 66.7 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
