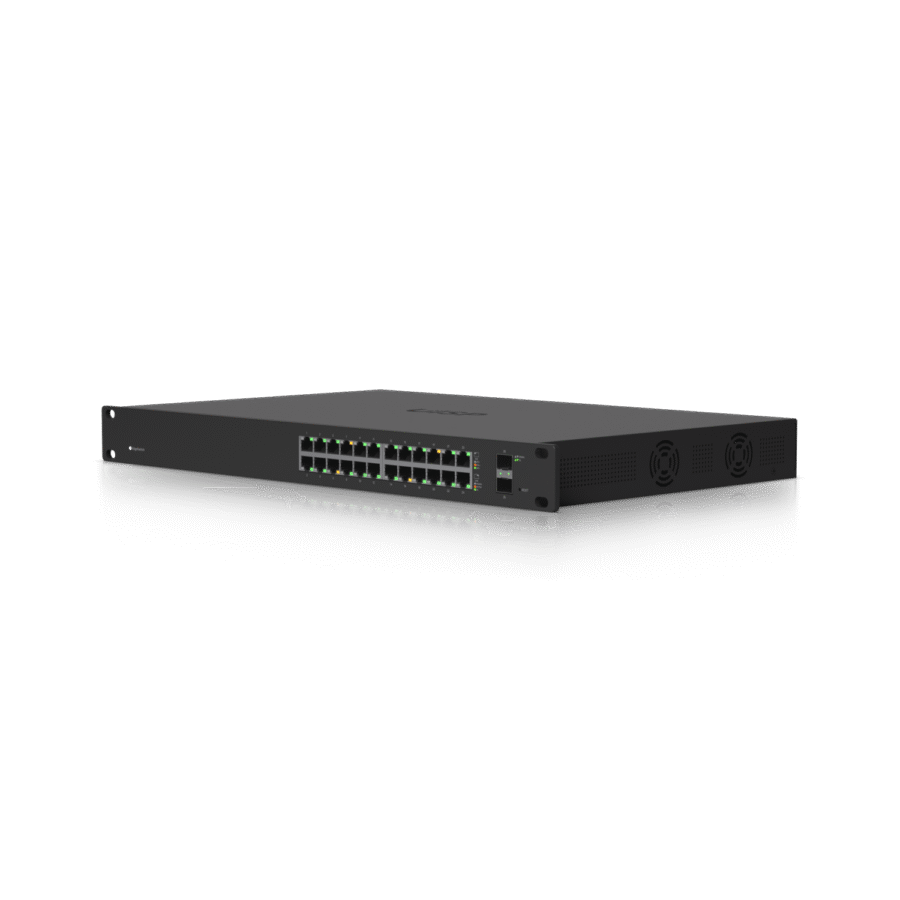

EdgeSwitch 24 PoE (250W)
Description
| Mechanical | |
|---|---|
| Dimensions | 485 x 43.7 x 285.4 mm (19.1 x 1.7 x 11.2″) |
| Weight | 4.7 kg (10.4 lb) |
| Hardware | |
| Management interface | (1) RJ45 serial port, Ethernet In/Out-Band |
| Networking interface | (24) GbE RJ45 ports (2) 1G SFP ports |
| PoE interface | (24) PoE/PoE+ 2-pair (Pins 1, 2+; 3, 6-) (24) 24V DC passive PoE 2-pair (Pins 4, 5+; 7, 😎 |
| Total non-blocking throughput | 26 Gbps |
| Switching capacity | 52 Gbps |
| Forwarding rate | 38.69 Mpps |
| Power method | 100-240V AC, universal input, 50/60 Hz |
| Power supply | AC/DC, internal, 250W |
| Max. power consumption | 30W (Excludes PoE output) |
| Total PoE available | 250W |
| Max. PoE wattage per portby PSE | PoE+: 34.2W Passive PoE: 17W |
| Voltage range PoE mode | PoE+: 50–57V Passive PoE: 20–27V |
| ESD/EMP protection | Air/contact: ±24 kV |
| LEDs | Ethernet ports: PoE, speed/link/activity SFP ports: speed/link/activity |
| Button | Factory reset |
| Rackmount | Yes, 1U |
| Shock and vibration | ETSI300-019-1.4 Standard |
| Ambient operating temperature | -5 to 40° C (23 to 104° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
