USW-Pro-Max-16-PoE (180W)
515 $
A 16-port, Layer 3 Etherlighting™ switch with 2.5 GbE, PoE++ output, and versatile mounting options.
Description

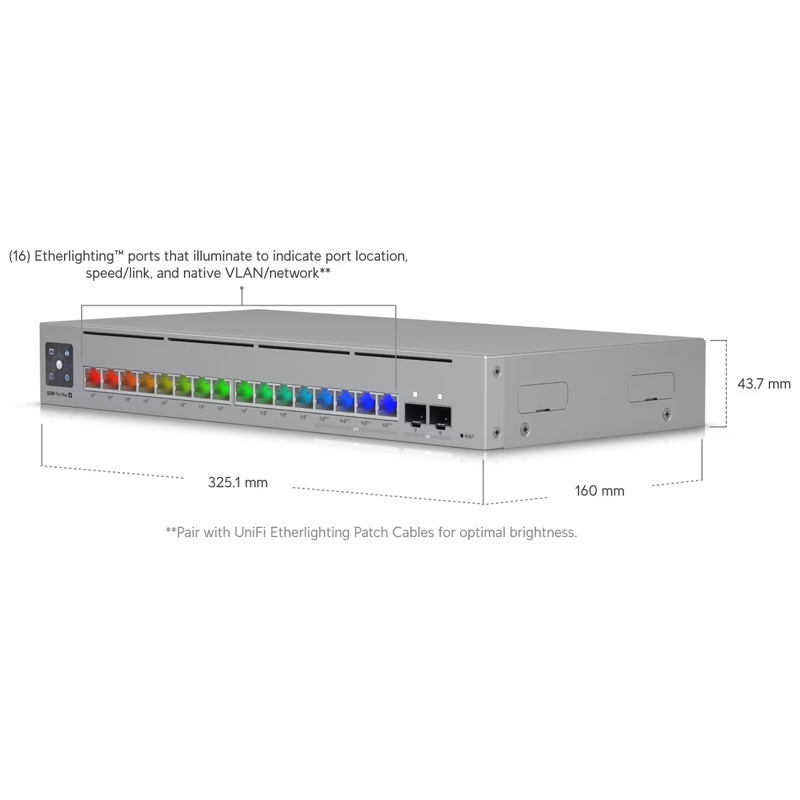

Dimensions
325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7″)

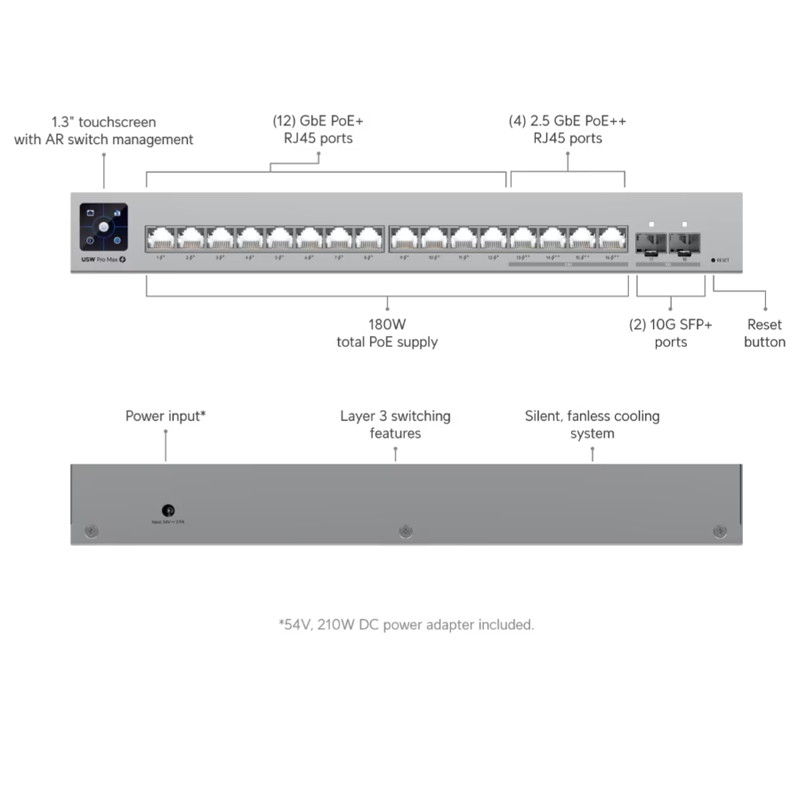

Port Layout
1 GbE RJ45
12 (All PoE+) (1G/100M/10M)
2.5 GbE RJ45
4 (All PoE++) (2.5G/1G/100M/10M)
10G SFP+
2 (10G/1G)
Max. PoE Output
Up to PoE++
Total PoE Availability
180W
Layer 3
✓
Form Factor
Rack mount (1U), desktop, wall
Etherlighting™
✓
Switching Capacity
84 Gbps
Total Non-Blocking Throughput
42 Gbps
Forwarding Rate
62 Mpps
Supported VLANs
1,000
MAC Address Table Size
16,000
L3 Table Size
ARP Entries
6,000
IPv4 Routes
512
IPv4 Static Routes
256
Packet Buffer Size
1.5 MB
Access Lists
IPv4
128
MAC
128
DHCP Server (Local Networks)
✓
DHCP Relay
✓
Inter-VLAN Routing (Local Networks)
✓
Static Routing (Local Networks)
✓
LACP Port Aggregation
✓
STP & RSTP
✓
QoS (DSCP)
✓
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
✓
IGMP Snooping
✓
802.1X Control
✓
MAC-Based ACLs & Device Isolation
✓
DHCP Snooping & Guarding
✓
Egress Rate Limit
✓
Flow Control
✓
Storm Control
✓
Multicast & Broadcast Rate Limiting
✓
MAC Address Blocking
✓
IP-Based ACLs & Network Isolation
✓
MAC-Based Port Restriction
✓
Port Isolation
✓
Port Mirroring
✓
Jumbo Frames
✓
LLDP-MED
✓
Voice VLAN
✓
Loop Protection
✓
Virtual Network Override
✓
PoE Ports
PoE+
12
PoE++
4
Max. PoE Wattage per Port by PSE
PoE
15.4W
PoE+
32W
PoE++
64W
Max. Power Consumption
25W (Excluding PoE Output) 210W (Including PoE Output)
Power Method
AC Adapter
Power Input Method
AC input
Power Supply
AC/DC, external, 210W
Supported Voltage Range
50—54V DC
Management
Ethernet AR
Heat Dissipation
68 BTU/hr (Excluding PoE Output)
Weight
2.1 kg (4.6 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel
Supported Rack Depth
400~1200 mm (15.7-47.2″)
LCM Display
1.3″ touchscreen
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
Etherlighting™
Ethernet
✓
SFP+
✓
NDAA Compliant
✓
Certifications
CE, FCC, IC, Anatel: 08953-24-08356
Application Requirements
UniFi Network
Version 8.1.127 and later
